programmer - panel & pcbs

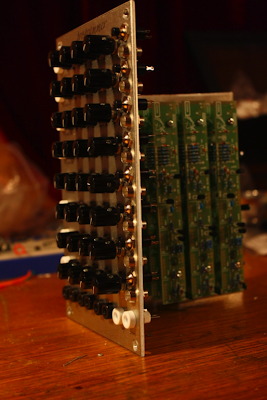

somehow i managed to drill the programmer panel reasonable precise and all of the pots fit behind the panel without shorting on each other. i had to bend up all the lugs on the pots which was a pain considering how many pots there are. overall im mega happy

as im not using the serge spacing i cannot mount the pcbs the way they were supposed to sit behind the panel. so i have to layer them behind the panel. this is going to making wiring this module a super nightmare, it was already a hard job when they were mounted by the pots in a row behind a cgs serge panel.

wiring these up will be interesting because you cannot use connectors and you need to use strip wire so these things will be stuck together once all wired up. i better have the pcbs built correctly. fingers crossed
